Payment Terms :L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :Contact us
Delivery Time :In stock
Packaging Details :Standard / New / Original
Output Voltage :760 mV to 7 V
Output Current :3 A
Switching Frequency :700 kHz
Packaging :MouseReel
Input Voltage :4.5 V to 18 V
Contact Now

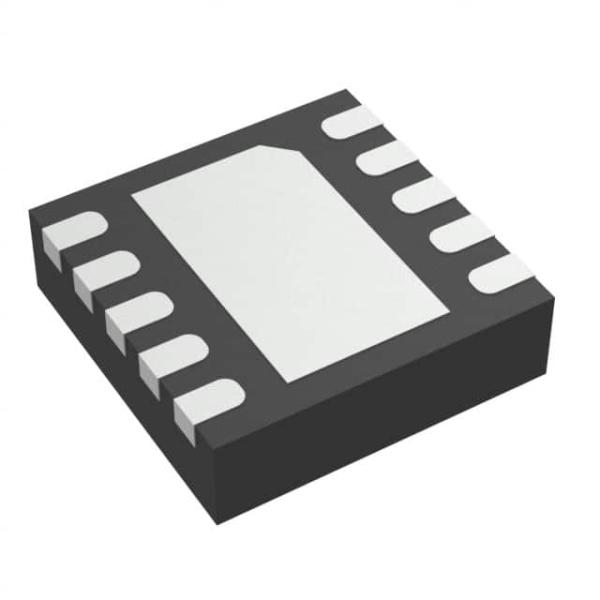

TPS54328DRCR / VSON-10 / Switching Voltage Regulators
The TPS54328 is an adaptive on-time D-CAP2™ mode synchronous buck converter. The TPS54328 enables system designers to complete the suite of various end-equipment power bus regulators with a cost effective, low component count, low standby current solution. The main control loop for the TPS54328 uses the D-CAP2 mode control that provides a fast transient response with no external compensation components.
The adaptive on-time control supports seamless transition between PWM mode at higher load conditions and Eco-mode operation at light loads. Eco-mode allows the TPS54328 to maintain high efficiency during lighter load conditions. The TPS54328 also has a proprietary circuit that enables the device to adopt to both low equivalent series resistance (ESR) output capacitors, such as POSCAP or SP-CAP, and ultra-low ESR ceramic capacitors. The device operates from 4.5-V to 18-V input (VIN).
The output voltage can be programmed from 0.76 V to 7 V. The device also features an adjustable soft start time. The TPS54328 is available in 8-pin DDA and 10-pin DRC packages, and is designed to operate over the ambient temperature range of –40°C to 85°C.
Product Attribute
Attribute Value
Texas Instruments
Product Category:
Switching Voltage Regulators
SMD/SMT
VSON-10
Buck
760 mV to 7 V
3 A
1 Output
4.5 V
18 V
1.8 uA
700 kHz
- 40 C
+ 85 C
TPS54328
Reel
Cut Tape
MouseReel
Brand:
Texas Instruments
Development Kit:
TPS54328EVM-686
Input Voltage:
4.5 V to 18 V
Load Regulation:
100 mV
Moisture Sensitive:
Yes
Operating Supply Current:
800 uA
Product:
Voltage Regulators
Product Type:
Switching Voltage Regulators
Factory Pack Quantity:
3000
Subcategory:
PMIC - Power Management ICs
Supply Voltage - Min:
4.5 V
Tradename:
SWIFT
Type:
Step Down Converter
Unit Weight:
0.001058 oz
